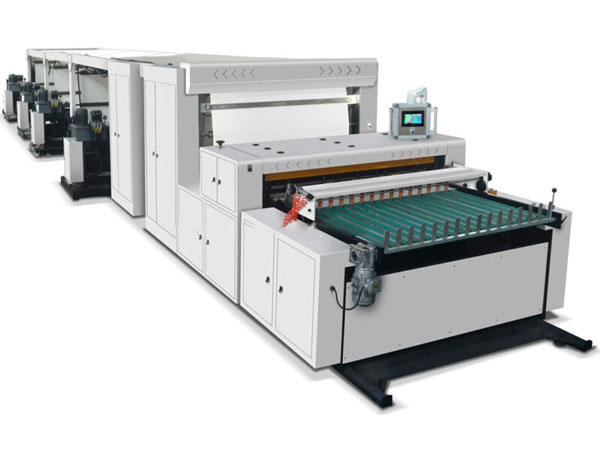

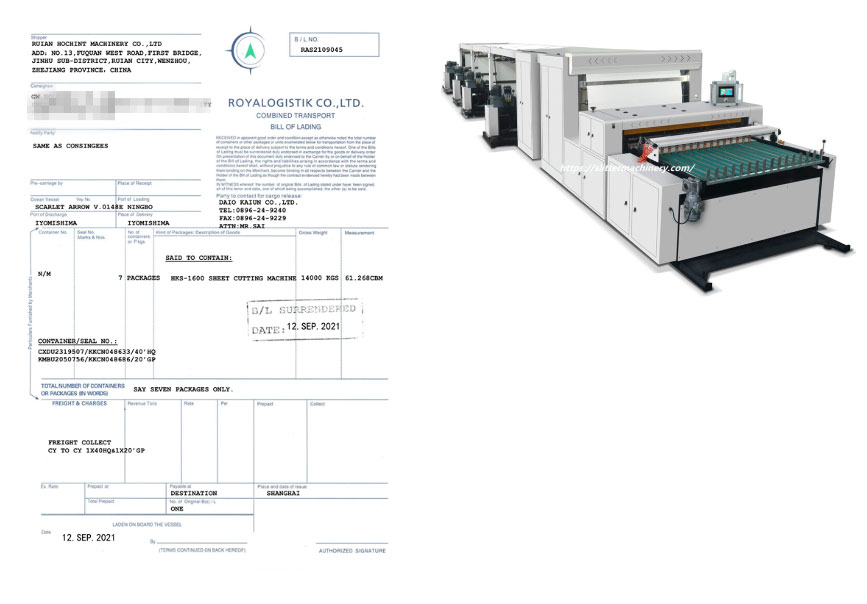

In September 2022, one set HKS-1600W four roll to sheet cutter was delivered to the plant of our client in Japan.
Our test video here
| Model | HKS-1100 | HKS-1400 | HKS-1600 |
| Max. web width(mm) | 1100 | 1400 | 1600 |
| Max. unwinding diameter(mm) | Φ1400 | ||
| Unwinding stand | Shaft-less Auto loading & floating type | ||
| Unwinding tension control | Magnetic powder brake with PLC control | ||
| Inner core diameter(mm) | 76mm(3”) and 152mm(6”) | ||
| Web guiding system | Ultrasonic sensor | ||
| Cutting length(mm) | 20-1100 | ||
| Precision of cross cutting | ±0.2 | ||
| Max. running speed(times/min) | 150 times/min (Based on the cutting length) | ||
| Max. mechanical speed(times/min) | 180 times/min (Based on the cutting length) | ||
| Cutting Thickness |
For paper:30-400g (according to the materials) |
||
| Traction motor(kw) | 1.5kw*4pcs | 1.5kw*4pcs | 1.5kw*4pcs |
| Servo motor(kw) | 5.5kw | 5.5kw | 5.5kw |
| Main power(kw) | 1.5kw | 1.5kw | 2.2kw |
| Stacker up-down motor(kw) | 0.75kw | 0.75kw | 0.75kw |
| Conveyor motor | 0.75kw | 0.75kw | 0.75kw |
| Total power(kw) | 15kw | 15kw | 17kw |
| Power supply | 380V 50HZ 3 phases | ||
| Air supply | 5.5kg/cm2×5m3/min | ||
| Total weight(kg) | 8000kg | 9000kg | 11000kg |
| Overall Dimension(mm) | 16500*3200*1850 | 16500*3500*1850 | 16500*3700*1850 |
